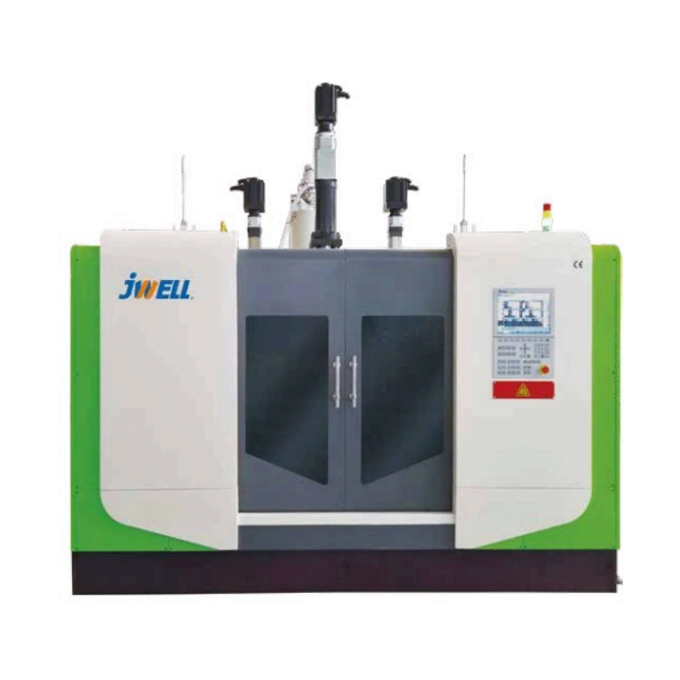

JWZ-EBM Full Electric Blow Molding Machine
PERFORMANCE ADVANTAGES
1.Full electric system,energy saving and environmental protection,50%~60%energy saving comparing to hydraulic system.
2.Servo motor drive,high movement accuracy,fast response,stable start and stop without impact.
3.Using fieldbus control,the whole machine is integrated into the system,which can monitor the running data of the host and auxiliary machine in real time,and realize the collection and data management.
4.Multi-point dynamic adjustment curve of wall thickness,automatic data fitting,smooth transition of type embryo.
5.The extruder adopts high efficiency screw,high output,low energy consumption.
6.Using jwell fifth generation U type clamping structure,clamping force uniform and stable.
7.Short molding cycle and high cooling performance.
8.Automatic production,effectively reduce personnel costs and management costs.
9.No leakage,low noise equipment,suitable for food,medicine,cosmetics and otherproducts with high requirements for cleanliness.
10.Mold and carriage device simple maintenance,low cost,can achieve large torque control.
OPTIONAL FUNCTIONS
1.Multi-layer,multi-cavity
2.Weighing feeding material system
3.5creen changer system
4.Online leak detection,visual detection,packaging and other automation equipment
Technical parameters
| Model | Unit | JWZ-EBM-420D | JWZ-EBM-520D JWZ-EBM-650D | JWZ-EBM-850D | ||
| Main screw diameter | mm | 65 | 65 | 75 | 90 | |
| ScrewL/D | ---- | 25:1 | 30:1 | 30:1 | 30:1 | |
| Screwrpm | r/min | 25-75 | 25-75 | 25-75 | 25-75 | |
| Max plasticizing capacity(PE) | kg/h | 65-75 | 100-105 | 110-130 | 180-200 | |
| Platen size WH | mm | 330X286 | 420X390 | 580X450 | 780*400 | |
| Mould thickness | mm | 140 | 180 | 240 | 320 | |
| Clamping force | KN | 50 | 80 | 180 | 240 | |
| Dry Cycle | S | 2.9 | 3.2 | 4 | 4.8 | |
| Platen moving stroke | mm | 420 | 520 | 650 | 850 | |
| Note:nformations listed above are for referenoe only,the production line can be designed by customer's requirements. | ||||||
