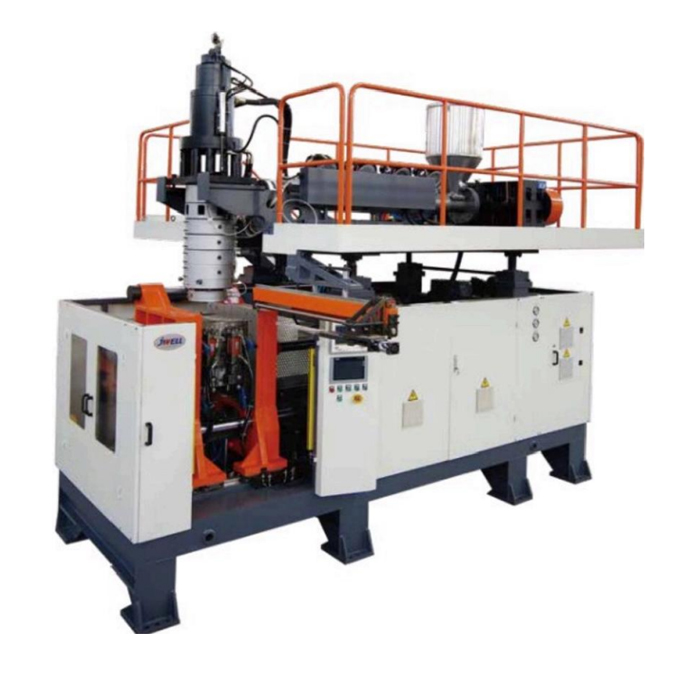

JWZ-BM30/50/100 Blow Molding Machine
Performance and Advantages
Suitable for producing different kinds of road pyramid,logistic insulation barrels.
Optional bottom sealing.product ejact,core-pulling movement elements.
Adopt high output extrusion system,accumulating die head.
Optional Hydraulic Servo control system.
Technical Parameters
| Model Uhit | BM30 | BM50 | BM100 |
| Max product volume L | 30 | 50 | 100 |
| Dry cycle Pc/h | 600 | 450 | 360 |
| Die head structure | Accumulating type | ||
| Main screw diameter mm | 80 | 90 | 100 |
| Max plasticizing capacity(PE)kg/h | 120 | 180 | 190 |
| Driving motor Kw | 37 | 45 | 55 |
| Accumulating volume L | 5.2 | 6.2 | 12.8 |
| Oil pump motor power(Servo)Kw | 22 | 30 | 30 |
| Clamping force KN | 280 | 400 | 600 |
| Space between platen mm | 400-900 | 450-1200 | 500-1300 |
| Platen size W*H mm | 740*740 | 880*80 | 1020*1000 |
| Max.mould size mm | 50*650 | 700*850 | 800*1200 |
| Heating power of die head Kw | 20 | 28 | 30 |
| Machine dimension L*W*H m | 4.3*2.2*3.5 | 5.6*2.4*3.8 | 5.5*2.5*4.0 |
| Machine weight T | 12 | 13.5 | 16 |
| Total power Kw | 95 | 110 | 135 |
Note:Informations listed above are for reference only,the production line can be designed by customers requirements.
