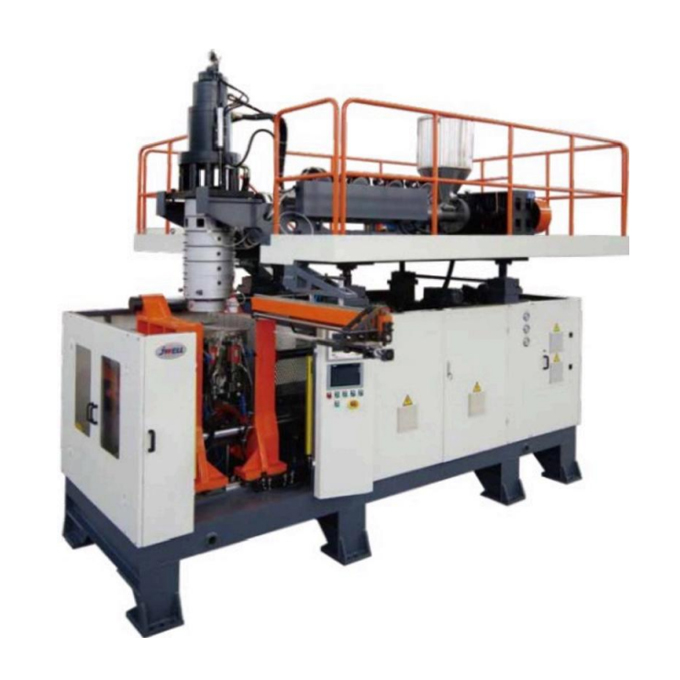

JWZ-BM30/50/100 Blow Molding Machine
Performance and Advantages
Suitable for producing different size of children safety chair,desk board,playgroudfacilities.
Adopt high output extrusion system,accumulating die head.
According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
According to the different product size,customized the platen type and size.
Optional hydraulic servo control system.
Optional bottom sealing.product eject,core-pullingmovement elements.
Technical Parameters
| Model Unit BM30 BM50 BM100 |
| Max product volume L 30 50 100 |
| Dry cycle Pc/h 600 450 360 |
| Die head structure Accumulating type |
| Main screw diameter mm 80 90 100 |
| Max plasticizing capacity(PE)kg/h 120 180 190 |
| Driving motor Kw 37 45 55 |
| Accumulating volume L 5.2 6.2 12.8 |
| Oil pump motor power(Servo)Kw 22 30 30 |
| Clamping force KN 280 400 600 |
| Space between platen mm 400-900 450-1200 500-1300 |
| Platen size W"H mm 740*740 880*880 1020*1000 |
| Max.mould size mm 550*650 700*850 800*1200 |
| Heating power of die head Kw 20 28 30 |
| Machine dimension L*W"H m 4.3*2.2*3.5 5.6*2.4*3.8 5.5*2.5*4.0 |
| Machine weight T 12 13.5 16 |
| Total power Kw 95 110 135 |
| Note:Informations listed above are for reference only,the production line can be designed by customer's requirements. |
