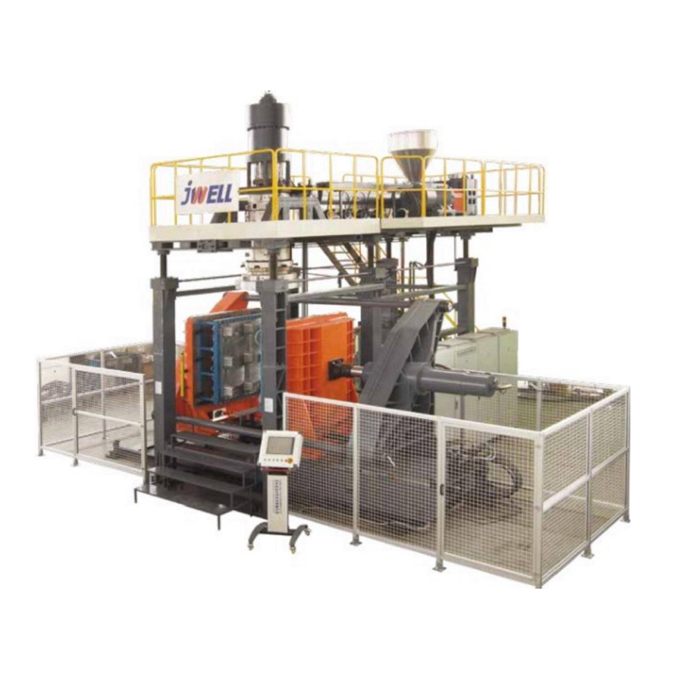

JWZ-BM1000 IBC Blow Molding Machine
Performance and Advantages

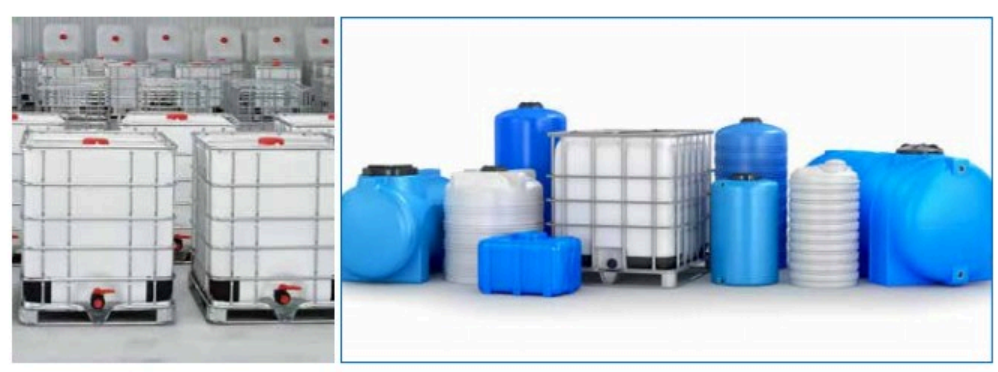

Suitable for producing 500-1200L drum.
Adopt high output extrusionsystem,accumulating type die headhydraulic servo controlsystem.
Technical Parameters
| Model Uhit BM1000 BM1000 | ||||
| Maxproductvolume | L | 1000 | ||
| Layer | Double Layer | |||
| Dry cycle | Pc/h | 155 | ||
| Die head structure |
Accumulat ing type |
Accumulat ing type | ||
| Mainscrew diameter | mm | 120*2 | ||
|
Maxplasticizingcapacity(PE) |
kg/h | 550-650 | ||
| Driving motor | Kw | 110*2 | ||
| Accumulating volume | L | 36 | ||
| Dilpumpmotorpower(Servo) | Kw | 45 | ||
| Clamping force | KN | 2000 | ||
| Space between platen | mm | 1100-2500 | ||
| Platen sizeW*H | mm | 1600*1600 | ||
| Max.mould size | mm | 1400*1600 | ||
| Heating power of die head | Kw | 30 | ||
| MachinedimensionL*WH | m | 12*10*6.8 | ||
| Machine weight | T | 53 | ||
| Total power | Kw | 430 | ||
| Note:Informations listed above are for reference only,the production line can be designed by customer's requirements. | ||||
