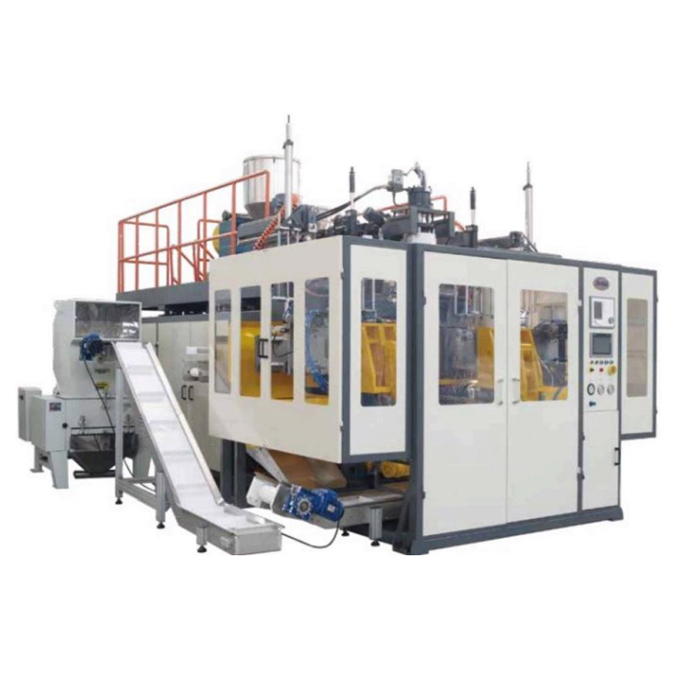

JWZ-BM05D/12D/20D Double Station Blow Molding Machine
Performance and Advantages

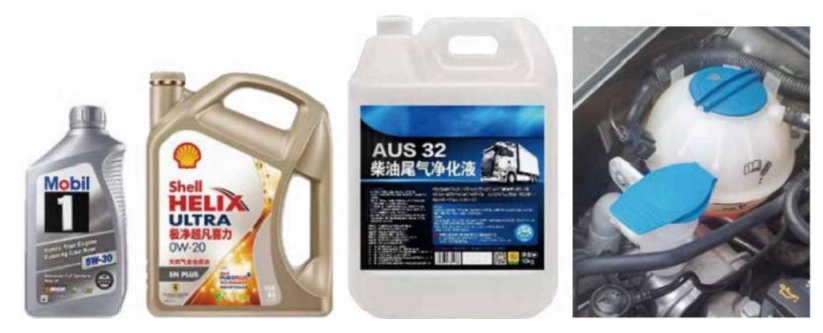

Suitablefor producing 1-5Ldifferentsize of gearoil botte,lubrication oil botle,coolingwater tank etc.
Optionalmutti-layer co-extrusion.
Optional view strip line system.
According to the product size,select different cavity of die head.
According to the different material,optionalJW-DB single station hydraulic screen-exchanger system.
According to customer's requirement,optional auto-deflashing on line,scrap conveying on line,finished product conveying on line.
Technical Parameters
| Model | Unit | EM05D | BM12D | BM20D |
| Max product volume | L | 5 | 12 | 20 |
| Dry cycle | Pc/h | 700*2 | 600*2 | 600*2 |
| Die head structure | Continuous type | |||
| Main screw diameter | mm | 75 | 90 | 90 |
| Max plasticizing capacity(PE) | kg/h | 90 | 160 | 160 |
| Driving motor | Kw | 30 | 45 | 45 |
| Oil pump motor power(Servo) | Kw | 15 | 18.5 | 18.5 |
| Clamping force | KN | 70 | 120 | 160 |
| Space between platen | mm | 150-510 | 240-640 | 2B0-680 |
| Platen size W*H | mm | 420*390 | 520*490 | 500*520 |
| Max.mould size | mm | 420*400 | 540*500 | 560*520 |
| Platen moving stroke | mm | 450/520 | 600/650 | 650 |
| Heating power of die head | Kw | 7.5 | 10 | 12.5 |
| Machine dimension L*W*H | m | 3.7*3.1*2.7 | 4.2*3.2*3.0 | 4.3*3.2*3.1 |
| Machine weight | T | 8.5 | 12 | 14 |
| Total power | Kw | 60 | 90 | 93 |
Note:Informations listed above are for reference only,the production line can be designed by customers requirements.
