JWZ-BM Solar Float Blow Molding Machine
Performance and Advantages

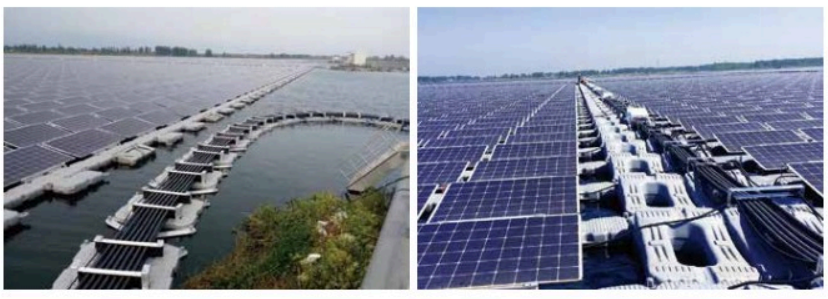

Suitable for producing different kinds of blow molding PV floating
Optianal bottom sealing.product eject,core-pulling movement ele
Adopt high output extrusion system,accumulating die head
According to the different product size,customized the platen type and size
Hydraulic Servo control system
Optional double layer co-extrusion system
Technical Parameters
| Model | Unit | EM500 | BM1000 |
| Die head structure | Accumulating type | ||
| Main screw diameter | mm | 120 | 135 |
| Max plasticizing capacity(PE) | kg/h | 350-450 | 550-650 |
| Driving motor | Kw | 132 | 160 |
| Accumulating volume | L | 26 | 45 |
| Oil pump motor power | Kw | 30 | 45 |
| Clamping force | KN | 800 | 1800 |
| Max space between platen | mm | 500-1400 | 700-1900 |
| Platen size WH | mm | 1020-2400 | 1600*2400 |
| Max.mould size | mm | 800-2500 | 1500*2500 |
| Heating power of die head | Kw | 25 | 38 |
| Machine dimension L*WH | m | 8.5*5.5*5.8 | 10.28*6.2*7.3 |
| Machine weight | T | 45 | 63 |
| Total power | Kw | 240 | 302 |
Note:Informations listed above are for reference only,the production line can be designed by customers requirements.
