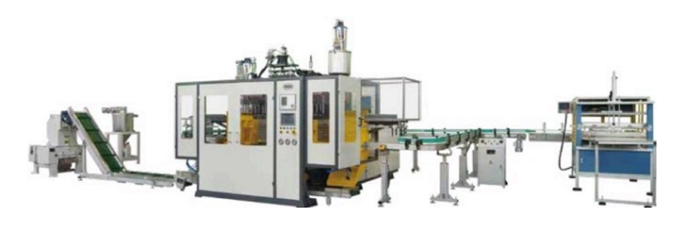

JWZ-02D/05D/12D/20D Double Station Blow Molding Machine
Performance and Advantages

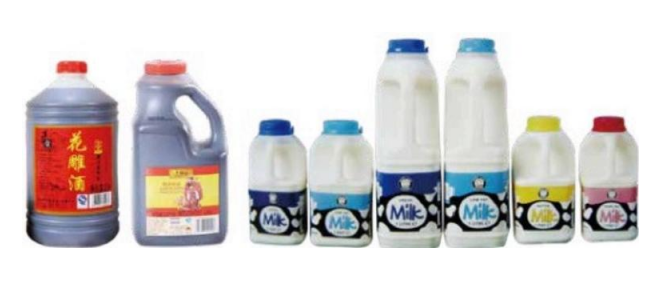

Suitable for producing 100ml-3000ml different size of Milk bottle,soy sauce bottle,yellow wine bottle.

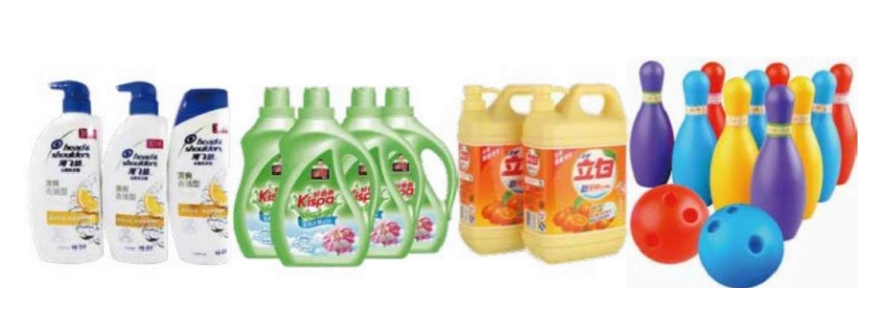

200ml-5000ml different size of shampoo bottle,body wash botte, detergent bottles and others Toiletries and different children's toys.
Optional pearly lustre layer co-extrusion system.
According to the product size.select different cavity of die head.
According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
According to customer's requirement.optional auto-deflashing on line,scrap conveying on line,finished product conveying on line and others.
Technical Parameters
| Model | Unit | BM02D | BM05D BM12D | BM20D | |
| Max product volume | L | 2 | 5 | 12 | 20 |
| Dry cycle | Pc/h | 900*2 | 700*2 | 600*2 | 600*2 |
| Die head structure |
>Cont |
inuous type | |||
| Main screw diameter | mm | 65 | 75 | 90 | 90 |
|
Max plasticizing capacity (PE) |
kg/h | 70 | 90 | 160 | 160 |
| Driving motor | Kw | 22 | 30 | 45 | 45 |
|
Oil pump motor power(Servo) |
Kw | 11 | 15 | 18.5 | 18.5 |
| Clamping force | KN | 40 | 70 | 120 | 160 |
| Space between platen | mm | 138-368 | 150-510 | 240-640 | 280-680 |
| Platen size WH | mm | 286*330 | 420*390 | 520*490 | 500*520 |
| Max.mould size | mm | 300*350 | 420*390 | 540*490 | 560*520 |
| Platen moving stroke | mm | 420 | 450/520 | 600/650 | 650 |
| Heating power of die head | Kw | 6 | 7.5 | 10 | 12.5 |
| Machine dimension L*WH | m | 3.0*1.9*2.4 | 3.7*3.1*2.7 | 4.2*3.2*3.0 | 4.3*3.2*3.1 |
| Machine weight | T | 5 | 85 | 12 | 14 |
| Total power | Kw | 45 | 60 | 90 | 93 |
Note:Informations listed above are for reference only,the production line can be designed by customers requirements.
