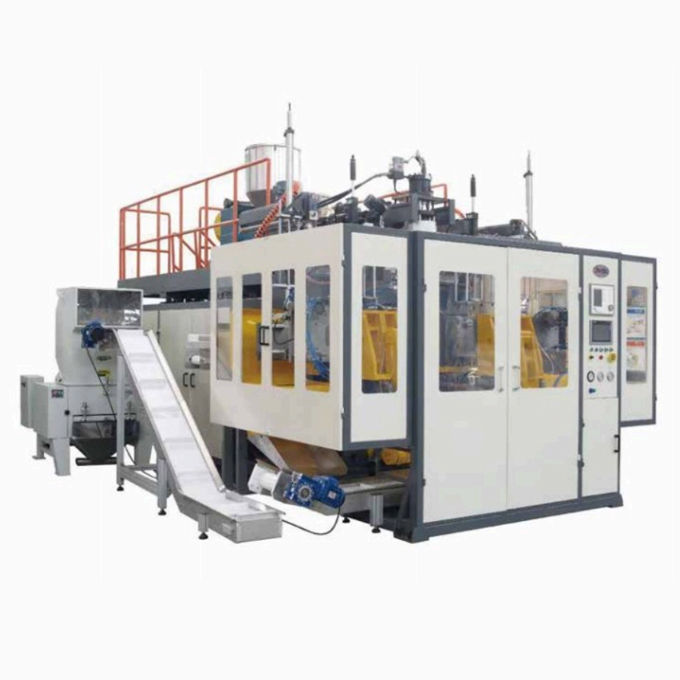

Plastic Medical Straw Tube/Dropper Blow Molding Machine

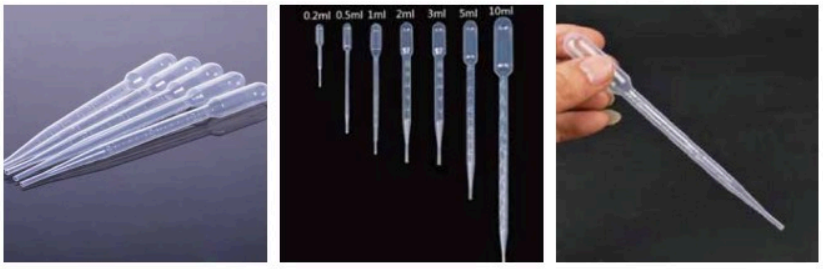

Disposable plastic straw pipe/dropper is widely used in laboratory,food research,medical industrial etc.Specifications are 0.2ml、0.5ml、1ml、2ml、3ml、5ml、10ml Etc.
Technical Parameters
| Model | Unit | BM02D | |
| Max product volume | L | 2 | |
| Dry cycle | Pc/h | 900*2 | |
| Die head structure | 连续式Continuous type | ||
| Main screw diameter | mm | 65 | |
|
Max plasticizing capacity(PE) |
kg/h | 70 | |
| Driving motor | Kw | 22 | |
|
Oil pump motor power(Servo) |
L | 11 | |
| Clamping force | KW | 40 | |
| Space between platen | KN | 138-368 | |
| Platen size WH | mm | 286*330 | |
| Max.mould size | mm | 300*350 | |
| Platen moving stroke | mm | 420 | |
| Heating power of die head | KW | 6 | |
| Machine dimension L*W"H | m | 3.0*1.9*2.4 | |
| Machine weight | T | 5 | |
| Total power | KW | 45 | |
| Note:Informations listed above are for reference only,the production line can be designed by austomer's requirements. | |||
