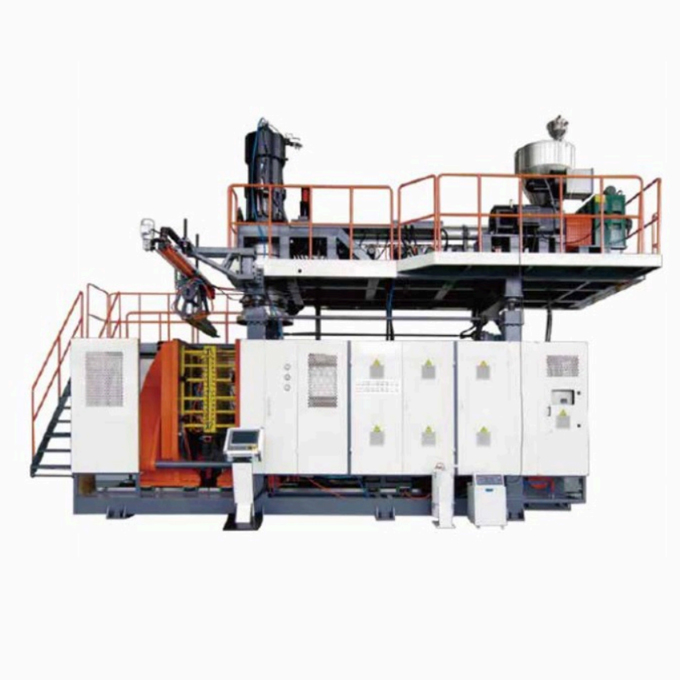

Plastic Hospital Bed Blow Molding Machine
Performance and Advantages

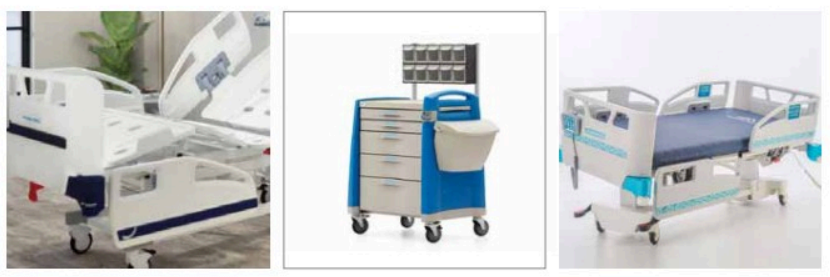

Suitable for producing different kinds of plastic medical bed head boards、foot boards and guardrails.
Adopt high output extrusion system,accumulating die head.
According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
According to the different product size,customized the platen type and size.
Technical Parameters
| Model | Unit | BM100 | BM160 |
| Max product olume | L | 100 | 160 |
| Dry cycle | Pc/h | 360 | 300 |
| Die head structure |
Accumulating type |
||
| Main screw diameter | mm | 100 | 100 |
| Max plasticizing capacity(PE) | kg/h | 240 | 240 |
| Driving motor | Kw | 90 | 90 |
| Accumulating volume | L | 12.8 | 18 |
| Oil pump motor power(Servo) | KW | 22 | 22 |
| Clamping force | KN | 600 | 800 |
| Space between platen | mm | 500*1300 | 500*1400 |
| Platen size W"H | mm | 1020*1000 | 1120*1200 |
| Max.mould size | mm | 800*1200 | 900*1450 |
| Heating power of die head | KW | 30 | 30 |
| Machine dimensionL*WH | m | 5.5*2.5*4.0 | 7*3.5*4 |
| Machine weight | T | 16 | 20 |
| Total power | KW | 135 | 172 |
Note:Informations listed above are for reference only,the production line can be designed by austomer's requirements.
