Medical grade Cast Film Extrusion Line
Features
TPU raw materials with different temperature and hardness ranges are extruded by two or three extruders at one time. Compared with the traditional composite process, it is more economical, more environmentally friendly and more efficient to recombine high-temperature and low-temperature thin films offline.
Products are widely used in water-proof strips, shoes, clothing, bags, stationery, sports goods and so on .
Production line Specification
| Model | Products width | Products thickness | Capacity |
| mm | mm | kg/h | |
| JWS90+JWS100 | 1000-2000 | 0.02-0.5 | 200-250 |
| JWS90+JWS90+JWS90 | 1000-2000 | 0.02-0.5 | 200-300 |
Jinwei Mechanical Cast Film Solution

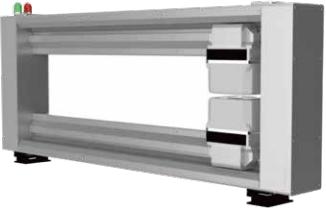

● A variety of radiometric probes are avail- able, and if required, we can integrate a thickness measuring system with an auto- matic die head;
● The edge material produced in the produc- tion process can be recycled online, and the edge material after crushing is transported to the extruder through the multi-compo- nent feeding device;
● We can provide automatic winding and unwinding machine, which can greatly reduce the labor cost.
Application fields of JWMD series production line

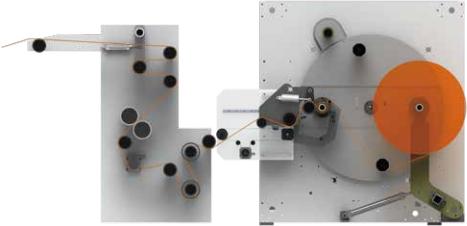

JWELL automatic winding machine can achieve high winding quality. In most cases, you can directly process the coil without rewinding；
JWELL winding machine is optimized to match the diameter of the winder up to 1,200 mm.
