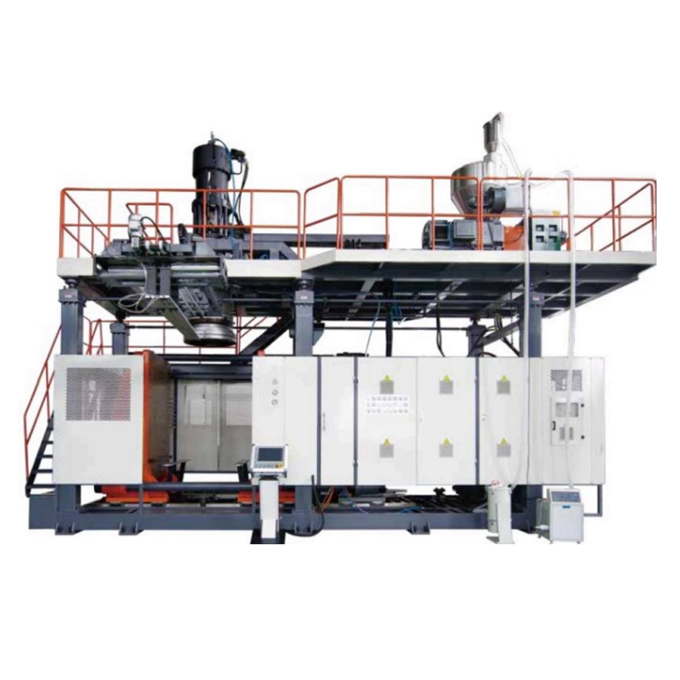

JWZ-BM500/1000 Blow Molding Machine
Performance and Advantages
Technical Parameters
| Model Unit BM500 BM1000 |
| Max product volume L 500 1000 |
| Dry cycle Pc/h 250 155 |
| Die head structure Accumulating type |
| Main screw diameter mm 120/135 120*2 |
| Max plasticizing capacity(PE) kg/h 400 700 |
| Driving motor Kw 132/160 132*2 |
| Accumulating volume L 45/60 75/90 |
| Oil pump motor power(Servo) Kw 45 45 |
| Clamping force KN 1300 1800 |
| Space between platen mm 950-2000 1000-2700 |
| Platen size WH mm 1600*1600 1800*1800 |
| Max.mould size mm 1400*1600 1600*1800 |
| Heating power of die head Kw 50 65 |
| Machine dimension L*W"H m 104*8.2*6.5 14*12*8.5 |
| Machine weight T 45 70 |
| Total power Kw 265/325 460 |
Note:Informations listed above are for reference only,the production line can be designed by customers requirements.
