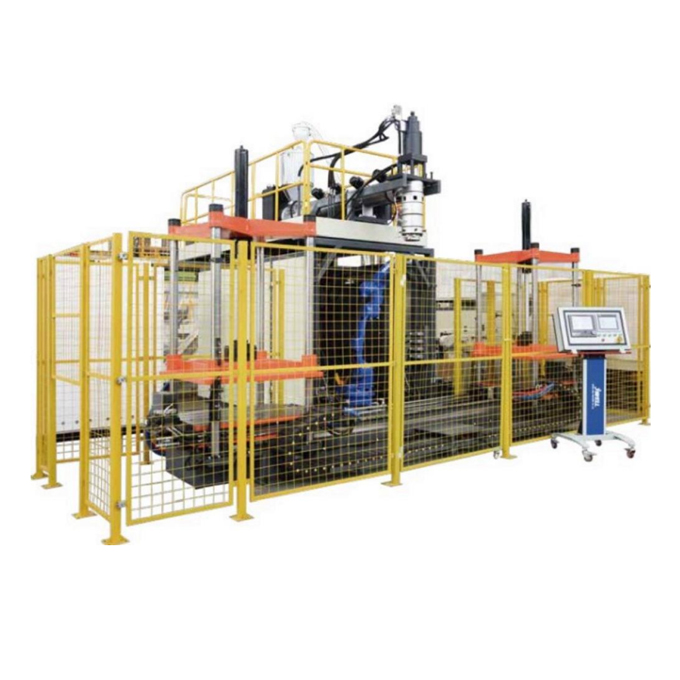

JWZ-BM3D Three-dimensional Blow Molding Machine
Performance and Advantages
Suitable for producing different car shaped pipe fifittings products,- lke the automotive oilfifiller pipe,air ducts pipe and others.
Fnished product less or without scrap forstrong strength.
Adopt high outputextrusion system,accumulating die head.
Optional action elements such as upper encapsulation,product ejection,andcore pulling.
Template size can becustomized according to product size.
Hydraulic servo control system.
Technical Parameters
| Model | Unit | JWZ-BM 3D-1000 | JWZ-BM-1003D |
| Main screw diameter | mm | 65 | 80 |
| ScrewL/D | ---- | 25:1 | 25:1 |
| Screw rpm | r/min | 25-75 | 25-75 |
| Max plasticizing capacity(PE) | kg/h | 65-75 | 100-120 |
| Platen sizeW"H | mm | 800*1200 | 1020*1500 |
| Mould thickness | mm | 450 | 600 |
| Clamping force | KN | 75 | 280 |
| Dy Cycle | S | 20 | 10 |
| Platen moving stroke | mm | 1800 | 360 |
Note:Informations listed above are for reference only,the production line can be designed by customers requirements.
