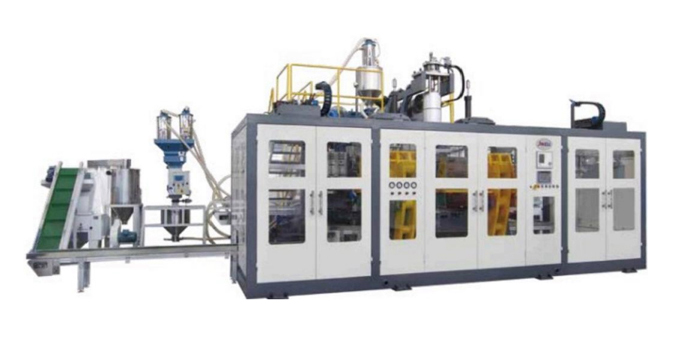

JWZ-BM30DN-C Blow Molding Machine
Performance and Advantages

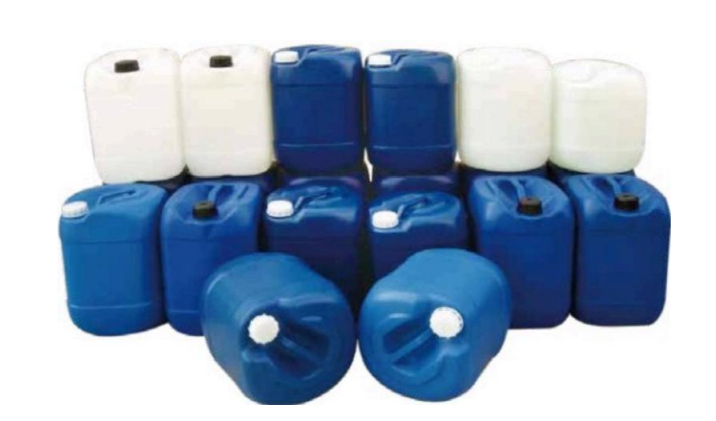

Suitable for producing 15-30L different size Chemical packaing jerrycan.
Adopt continuoustype die head,up-blowing structure,convenient for poduct auto-deflashing on-line,scrap conveying on ine,finished poduct leak testing on ine,conveying.packing,etc.,reducing the workingcostandincreasing the production ratio.
Adopt toggle type platen structure,have the advatages of uniform-clamping,big clamp force,assembling large mould,easier dismounting&assembling the mould.
Optionalmulti-layer co-extrusion system.
Optional view strip line system.
Optional hydraulic servo control system.
Technical Parameters
| Model | Unit | EM30DN-C | |
| Max product volume | L | 30 | |
| Dry cycle | Pc/h | 450*2 | |
| Die head structure | Continuous type | ||
| Main screw diameter | mm | 100 | |
| Max plasticizing capacity(PE) | kg/h | 190 | |
| Driving motor | Kw | 55 | |
| Oil pump motor power(Servo) | Kw | 22 | |
| Clamping force | KN | 300 | |
| Space between platen | mm | 340-860 | |
| Platen size W"H | mm | 580*600 | |
| Max.mould size | mm | 500*600 | |
| Platen moving stroke | mm | 800 | |
| Heating power of die head | Kw | 20 | |
| Overall imension L*W*H | m | 5.6*4.8*4.5 | |
| Machine weight | T | 18 | |
| Total power | Kw | 125 | |
| Note:Informations listed above are for reference only,the production line can be designed by customers requirements. | |||
