JWZ-BM30D/50D/100D Blow Molding Machine
Performance and Advantages

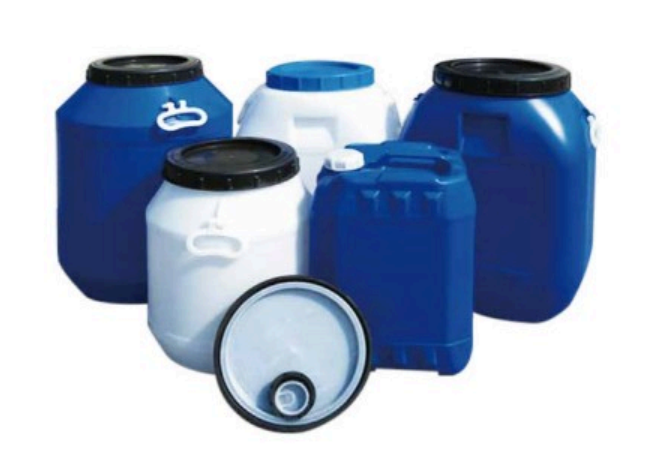

Suitable for producing 15-100L different size of jerrycan, open-top drums chemical packaging products.
Adopt high output extrusion system,double station,accumulating die head.
Optional view strip line system.
Optional hydraulic servo control system.
Optional double layer co-extrusion system.
Technical Parameters
| Model | Unit | BM30D | BM50D | BM100D |
| Max product volume | L | 30 | 50 | 100 |
| Dry cycle | Pc/h | 800 | 600 | 500 |
| Die head structure | Accumulating type | |||
| Main screw diameter | mm | 90 | 100 | 120 |
|
Max plasticizing capacity (PE) |
kg/h | 180 | 220 | 280 |
| Driving motor | Kw | 55 | 75 | 110 |
| Accumulating volume | L | 5.2 | 6.2 | 12.8 |
| Oil pump motor power(Servo) | Kw | 22 | 30 | 30 |
| Clamping force | KN | 280 | 400 | 600 |
| Space between platen | mm | 400-900 | 450-1200 | 500-1300 |
| Platen size W*H | mm | 740*740 | 880*880 | 1020*1000 |
| Max.mould size | mm | 550*650 | 700*850 | 800*1200 |
| Platen moving stroke | mm | 1400 | 1800 | 1900 |
| Heating power of die head | Kw | 20 | 28 | 30 |
| Machine dimensionL*W*H | m | 5.2*8.5*3.5 | 5.6*9.2*3.8 | 6.0*10.2*4.2 |
| Machine weight | T | 16 | 23 | 25 |
| Total power | Kw | 115 | 145 | 195 |
Note:Informations listed above are for reference only,the production line can be designed by customers requirements.
