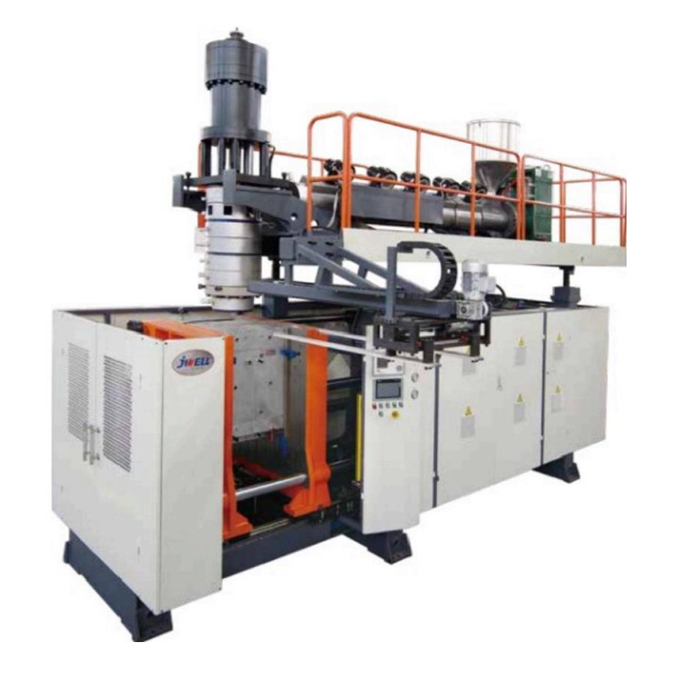

JWZ-BM30/50/100/160 Blow Molding Machine
Performance and Advantages

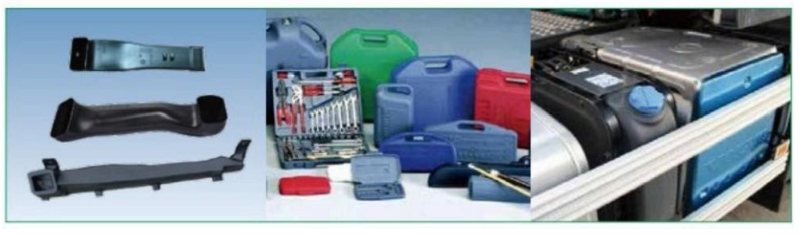

Suitable for producing different kinds of car urea bax,tool box,automotive seat,auto air duct,auto flow board,bumper and Car Spoilers.
Adopt high output extrusion system,accumulating die head.
According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
According to the different product size,customized the platen type and size.
Optinal hydraulic servo control system.
Optinal bottom sealing,take-out robot.
Technical Parameters
| Model | Unit | BM30 | BM50 BM100 | BM160 |
| Max product volume | L | 30 | 50 100 | 160 |
| Dry cycle | Pc/h | 600 | 450 360 | 300 |
| Die head structure | Accumulating Type | |||
| Main screw diameter | mm | 80 | 90 100 | 100 |
| Max plasticizing capacity(PE) | kg/h | 120 | 180 190 | 240 |
| Driving motor | Kw | 37 | 45 55 | 90 |
| Accumulating volume | L | 5.2 | 6.2 12.8 | 18 |
| Oil pump motor power(Servo) | Kw | 22 | 30 30 | 30 |
| Clamping force | KN | 280 | 400 600 | 800 |
| Space between platen | mm | 400-900 | 450-1200 500-1300 | 500-1400 |
| Platen size W"H | mm | 740*740 | 880*880 1020*1000 | 1120*1200 |
| Max.mould size | mm | 550*650 | 700*850 800*1200 | 900*1450 |
| Heating power of die head | Kw | 20 | 28 30 | 30 |
| Machine dimension L*WH | m | 4.3*2.2*3.5 | 5.6*2.4*3.8 5.5*2.5*4.0 | 7*3.5*4 |
| Machine weight | T | 12 | 13.5 16 | 20 |
| Total power | Kw | 95 | 110 135 | 172 |
Note:Informations listed above are for reference only,the production line can be designed by customers requirements.
